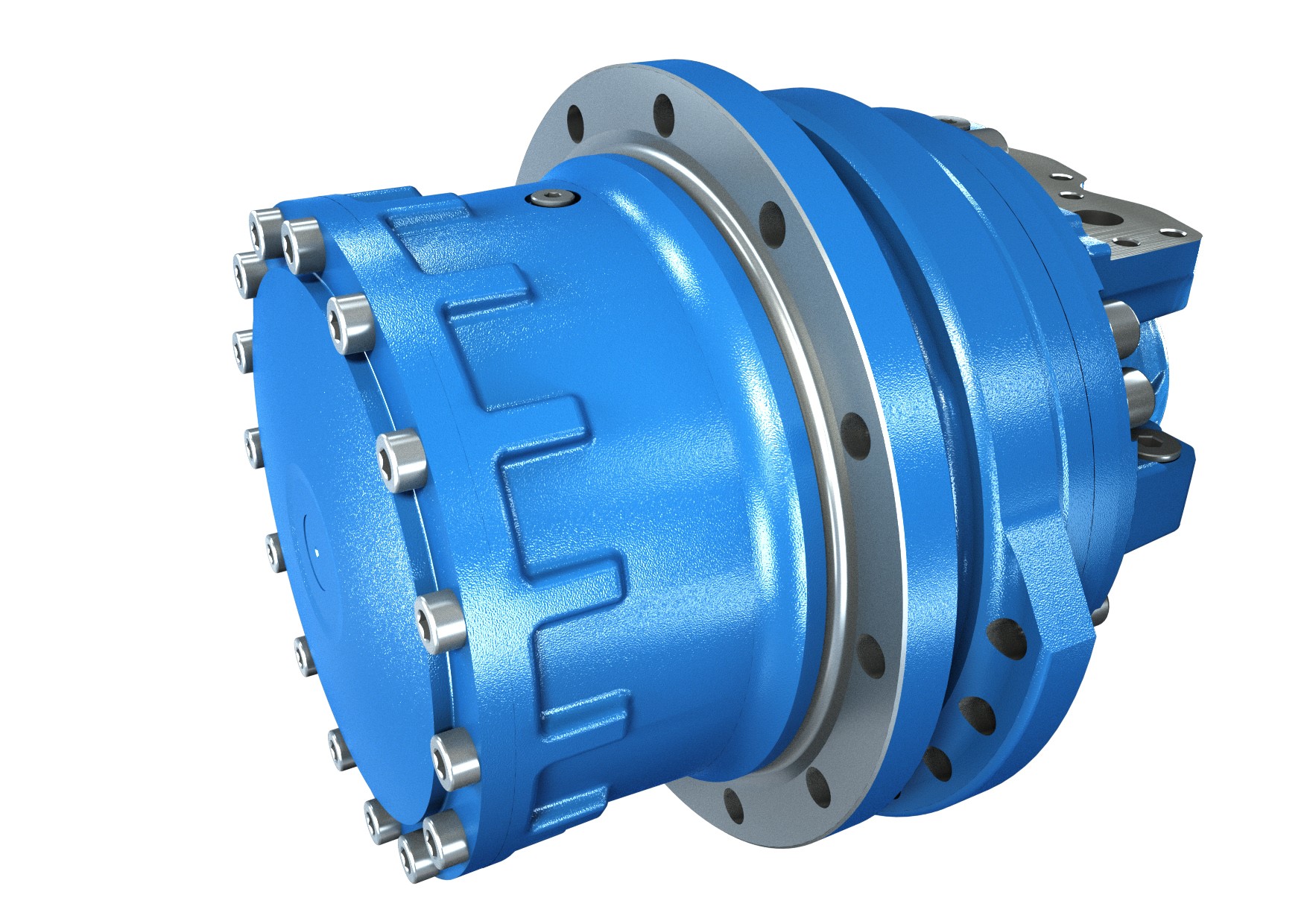

MT07 Reinforced, High-Performance Motor for Track Drives

MT07 Reinforced, High-Performance Motor for Track Drives

Designed to satisfy all CTL market players, Poclain Hydraulics’ new MT07 specifically addresses the tough working conditions of the application and tracked vehicles in general. Each feature has been carefully gauged to offer best value for money in the industry:

No compromise between performance and compactness

The design of the MT07 benefits from the technology developed for the MHP range including architecture, performance and materials. With a displacement between 495 to 920 cc, the MT07 fits in a size 05 MS motor and can bear as much load as a size 18. The MT07’s efficiency also reduces heat generation and noise.

450 bar max pressure

The MT07 has gone through extensive validation 450 bar max pressure.

High speed and efficiency

With the MT07, a tracked machine can run at 20 kph maximum ground speed without compromising on torque. With a 1.5 displacement ratio, the motor withstands maximum travel speed in both low and high displacement.

High bearing capacity

Specifically sized for tracks, the motor’s high bearing capacity withstands shock loads. Perfectly balanced around the sprocket mount, its robust design enhances reliability.

Easy integration

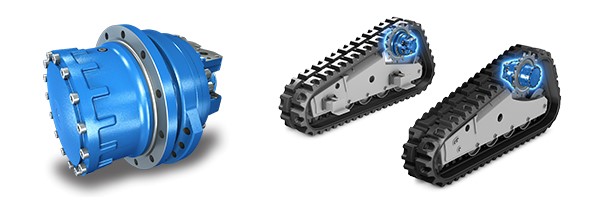

The track and chassis mounts are positioned to exactly match the track configuration.

Compact envelope

Measuring 352 mm, the motor fits inside standard tracks.

High-performance braking

The powerful brake withstands emergency braking without deterioration.  The brake is spring applied and hydraulically released (SAPR) leading any issue in the hydraulic circuit to stop the vehicle.

Superior resistance to pollution

Maintenance-free and specifically designed for tracks, the seals withstand exposure to packed mud, debris and chemicals.

Identical performance in forward and reverse

The MT07 delivers the same performance in both directions allowing CTLs to be as powerful in forward and reverse. The symmetrical design simplifies sourcing, with a single part number for left and right sides.

Integration freedom

The track and chassis mounts are positioned to exactly match the track configuration. Regarding ports, the motor is available with either axial or radial connections to give the OEM greater freedom of integration. It can interface with a fixed or suspended undercarriage.

Designed in conjunction with the CTL OEMs, the MT07 is designed to fulfill the needs of current and next-generation machines. Its performance level, ruggedness and versatility go beyond the application and make it suitable for tracked vehicles in agriculture, forestry, and mining.
