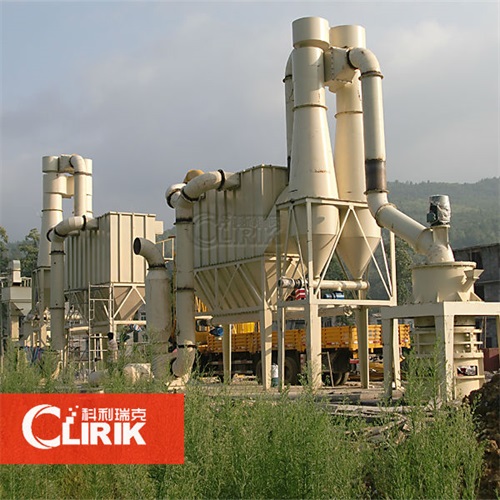

Clirik: Gypsum Powder Production Line Project

Gypsum is widely used in all walks of life. At the same time, the requirements of gypsum processing on environmental protection have become imperative. The production process of environmentally friendly gypsum powder has also attracted the attention of many investors. Clirik has been focusing on the development of green gypsum powder production line for 20 years, and the service experience of a large number of gypsum powder users, making Clirik have accumulated rich professional experience in the environmental protection process of gypsum powder.

The equipment needed for the whole set of green gypsum powder production line process includes hoist, storage bin, vibrating feeder, pulverizer, screw conveyor, bag filter and so on. The finished products meet the market requirements, and are equipped with dust collectors in the operation, which are environmentally friendly and pollution-free, and are very suitable for users who have strict requirements on environmental protection.

Clirik Gypsum Powder Production Line Work Flow: materials are continuously and evenly fed into the mill through the electromagnetic vibrating feeder for grinding. The ground gypsum powder is blown to the analyzer by the circulating air of the blower for classification. The powder with fineness conforming to the specifications enters the large cyclone collector with the wind flow. After collection, the powder is discharged through the powder outlet to be the finished product. The finished product falls into the screw conveyor and enters the next stage. The molecules with unacceptable fineness are returned to the main machine of the mill for secondary grinding until the fineness is qualified. The entire milling system is closed-loop, using a bag-type dust collector to collect the dust remaining in the airflow of the fan again, and then discharge it to the environment to ensure no dust pollution. The material passing through the grinding system is changed from a particle size of 0 to 30 mm to about 200 mesh, which meets the fineness requirements of gypsum powder.
