Small
autonomous or radio-controlled vehicles are highly adaptable to working in
unsafe, difficult or inaccessible environments. From firefighting equipment to
turf-care machines, including track-drive vehicles, their drive systems need to
be compact, responsive and powerful. This is exactly what Poclain Hydraulics
offers.
Poclain helps customers in various markets
integrate these new technologies that are influencing their industries like
never before. In construction, agriculture, forestry, and security services, this
technology enables machines to perform functions autonomously such as digging
trenches, excavating foundations, and grading building pads and more.
In China Fire robots recently appears on
the field. This type of firefighting equipment is used in environments that are
difficult and dangerous for humans beings. Danfo, the system integrator for
this machine, collaborated with Poclain to integrate four MS02 motors for the
track drive in this machine.

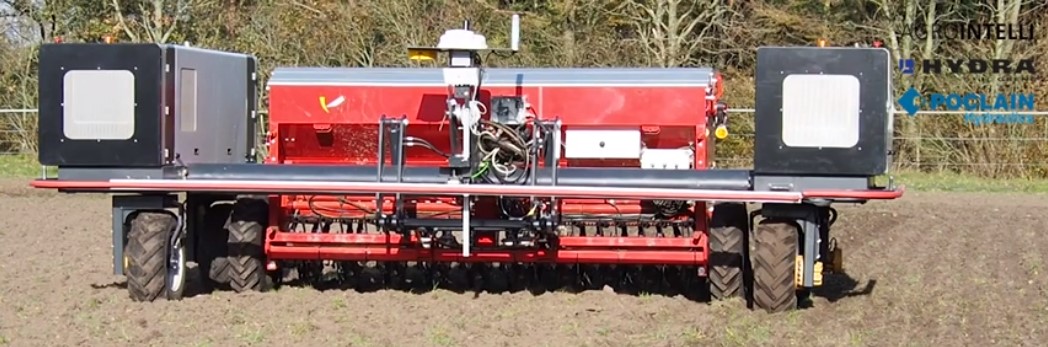

In agriculture, Poclain Hydraulics drive
system solutions equip various autonomous machines worldwide, such as precision
makers, radio-controlled mowers, and other including Agrointelli Robotti in
Denmark.
Poclain Hydraulics also supplies
wheelmotors for Raven Industries’ DOT Power Platform.
The
Poclain Hydraulics PM10 pump a champion on light robots and radio-controlled
machines
Poclain’s electro-proportional control PM10
pump’s axial pistons and trunnion design are fully adapted to accommodate medium
duty applications like robots. Starting at only 7 cc (0.43 cu.in per rev), it offers
the smallest displacement on the market. If you need more speed through bigger displacement,
the PM20 offers 21 to 28 cc/rev, with the same electro proportional control as
PM10.
he PM10 with electro-proportional control
is fit for radio-controlled applications between 15 and 40 kW (20 to 53 HP),
such as trench compactors, tandem rollers, mowers, sprayers, carriers and
others.
With its universal solenoid
electro-proportional control, the PM10 connects to any type of smart control
system. It is available either with (Q option) or without feedback (P option).
The feedback provides optimal stability even on rough terrain, a feature that
comes in handy on applications such as trench compactors and mowers.
Choose from a wide array of options:
·
Charge pump
· Flushing valve
·
Anti-stall Valve
·
Pressure cut-off
·
Safety Valve
·
Neutral position switch
·
Filter on the charge pressure
line with and without a clogging indicator
· Mechanical or hydraulic inching
· Roller bearing
·
Tandem mount for tracked
vehicles and compactors
PM10 specifications
·
Closed loop circuit
·
7 to 21 cc (0.23 to 1.24 cu.in
per rev) displacement
·
210-350 bar (3,000-5,000 PSI)
circuit pressure
·
High-pressure relief valves
included
For a high-performance system package, the
PM10 pairs with Poclain Hydraulics MK04, MS02 or MS05 motors and a gear pump
for the attachment.
