Derrick Crane QTDC3023

Product Category: Cranes

Save the product

Product Introduction

QTDC3023 – Key Features 1. Designed for Rooftop Lifting The QTDC3023 is a derrick crane designed for rooftop lifting, tower crane dismantling and other high-level lifting operations. Its compact structure suits limited rooftop space. 2. Strong Lifting Capacity at Short Radius It can lift up to 10 t at a working radius of approximately 4.5–10.65 m, with a jib angle of 69.9°–84°, making it suitable for heavy lifting on rooftops. 3. 30 m Jib for Flexible Operation With a 30 m maximum jib length and 2.3 t jib-tip load, the QTDC3023 provides a wide working range while maintaining good lifting capacity. The adjustable jib angle allows the working radius to be adapted to site conditions.

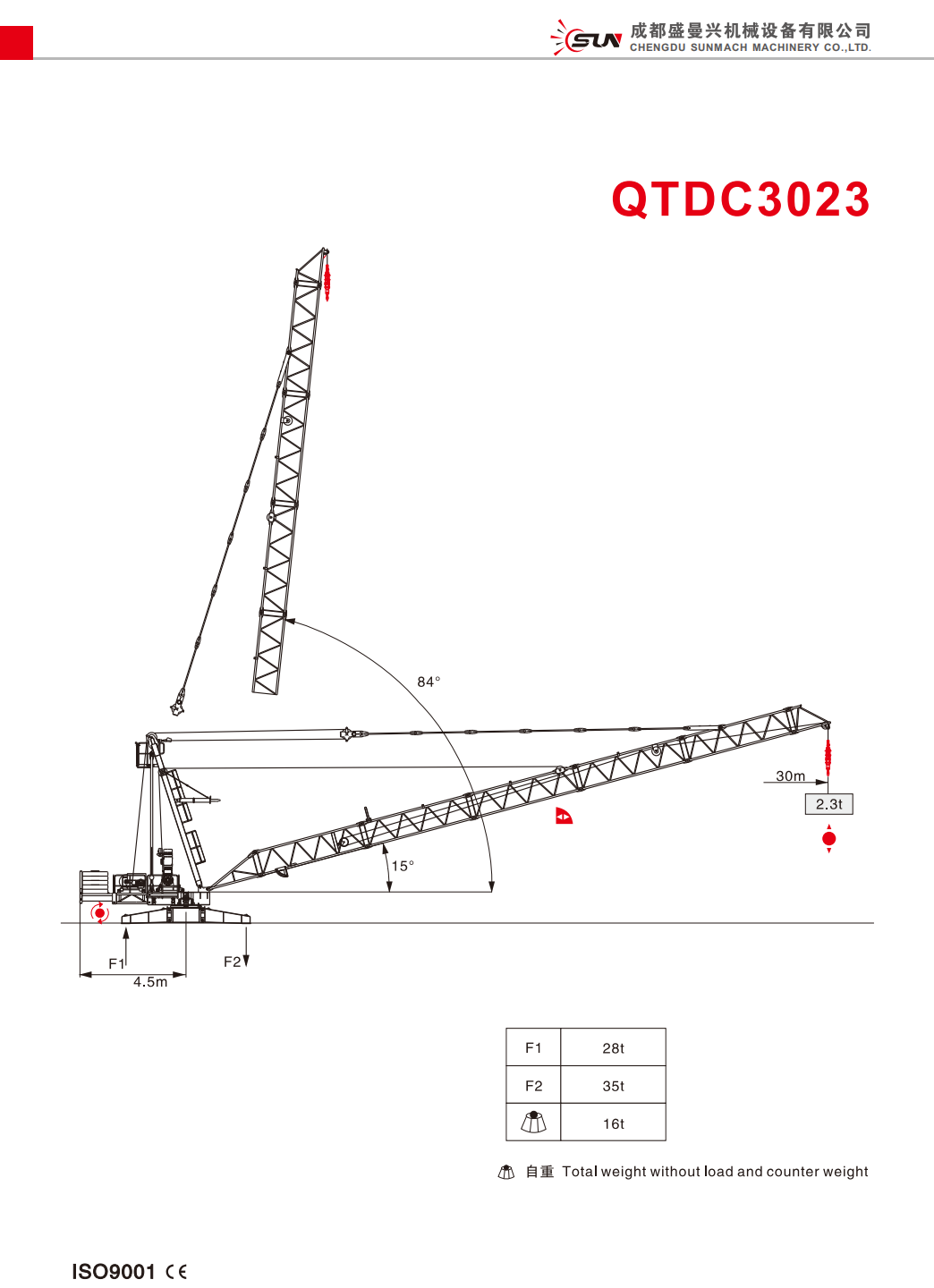

Product Brochure
