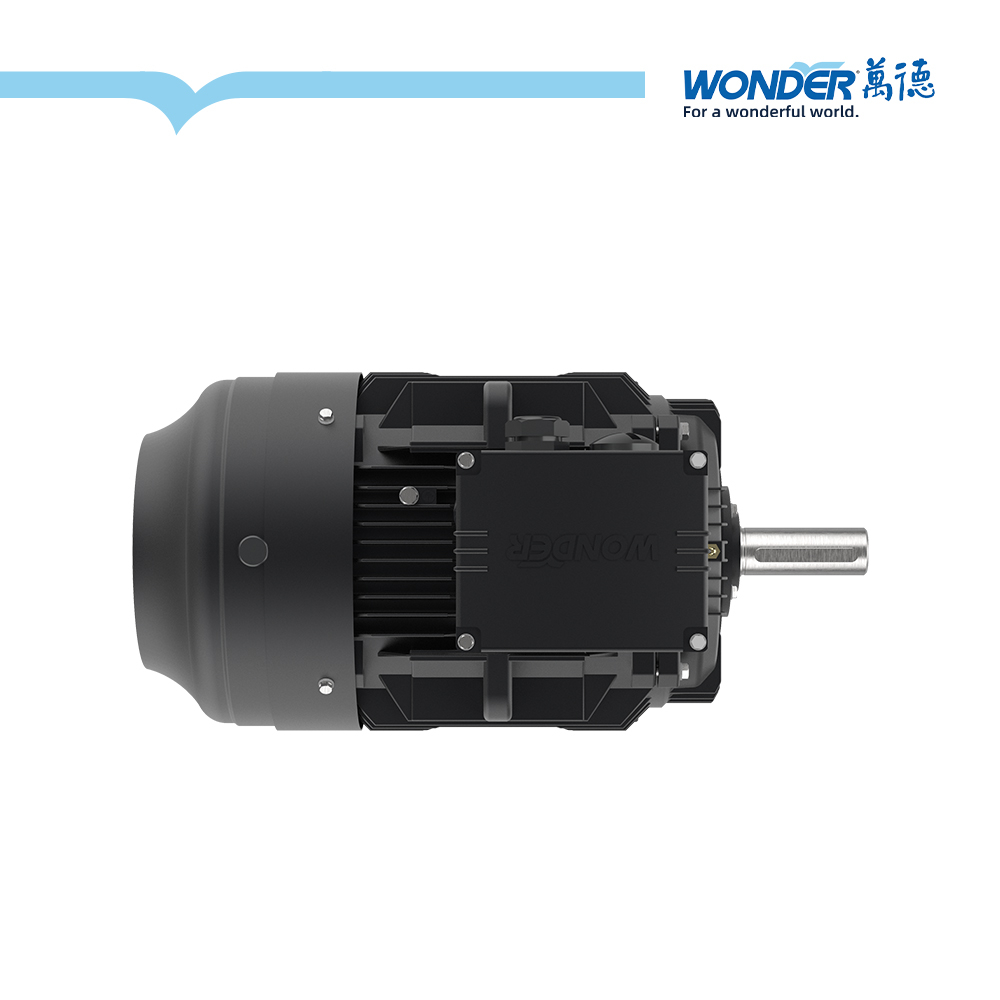

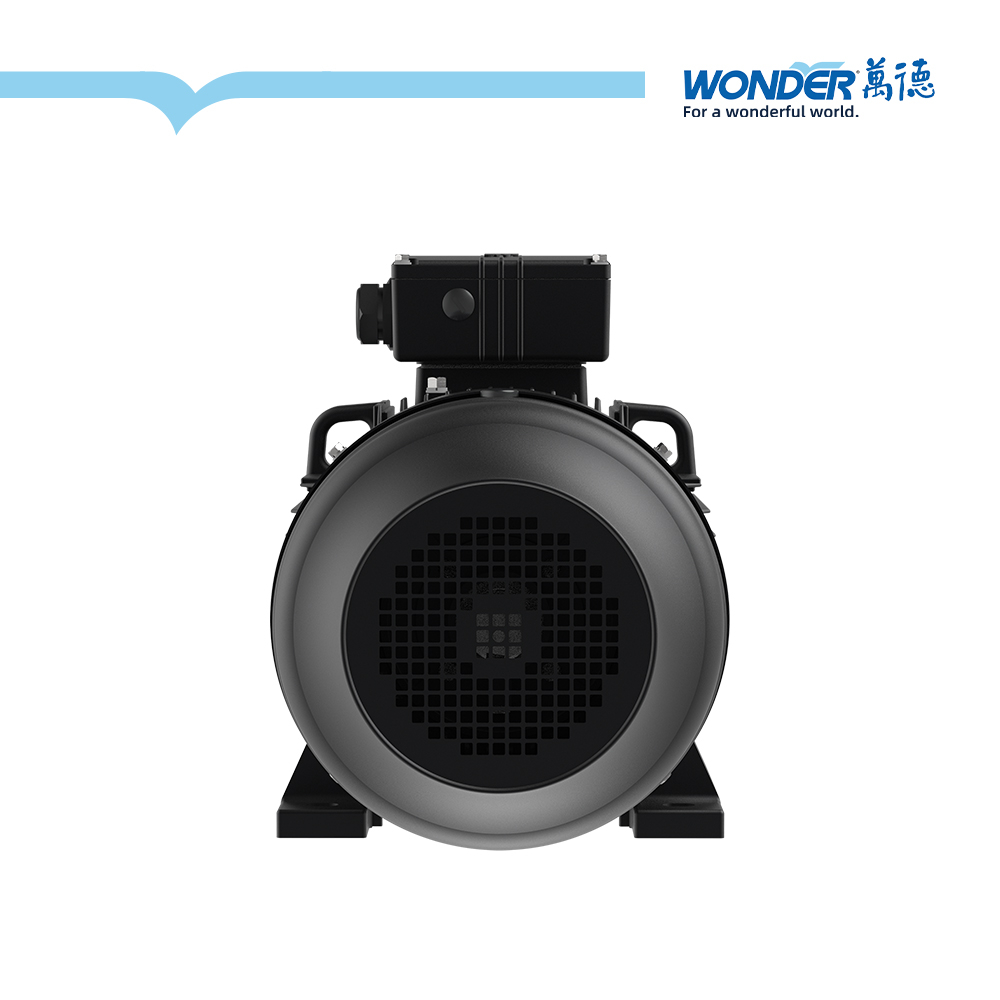

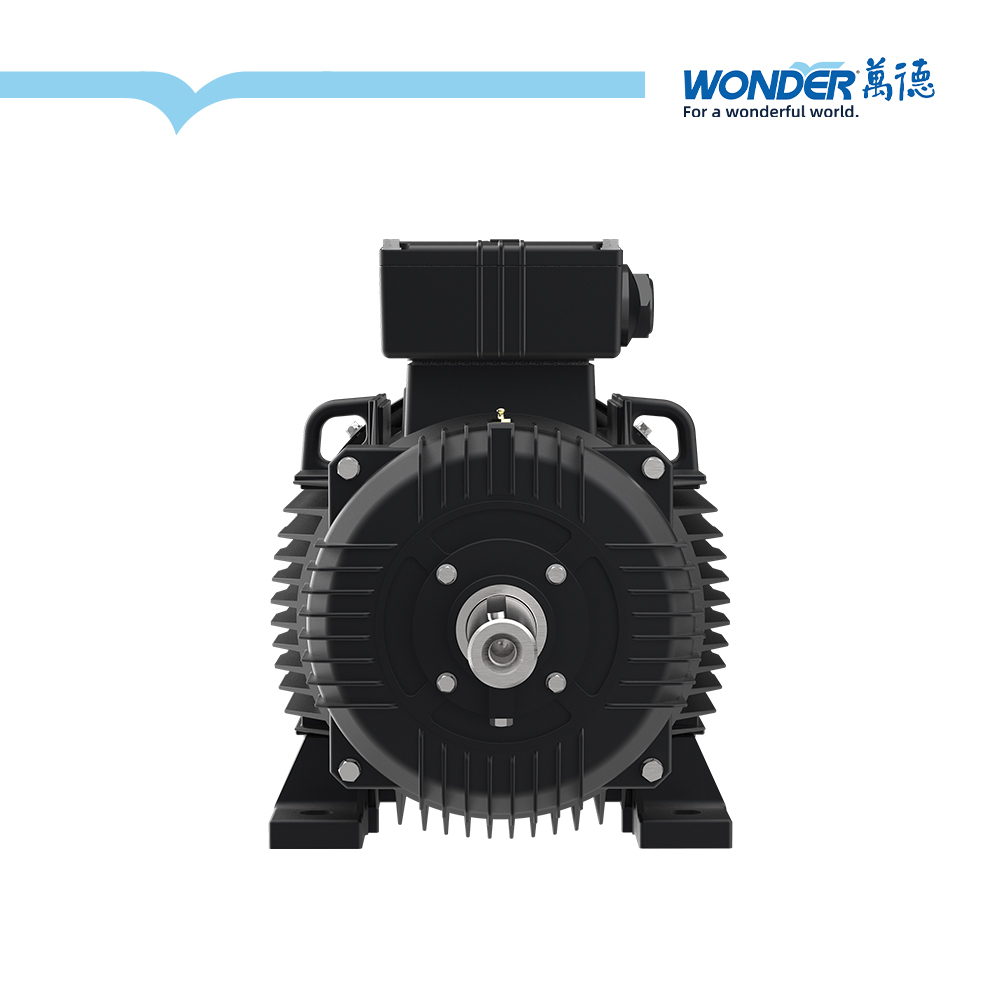

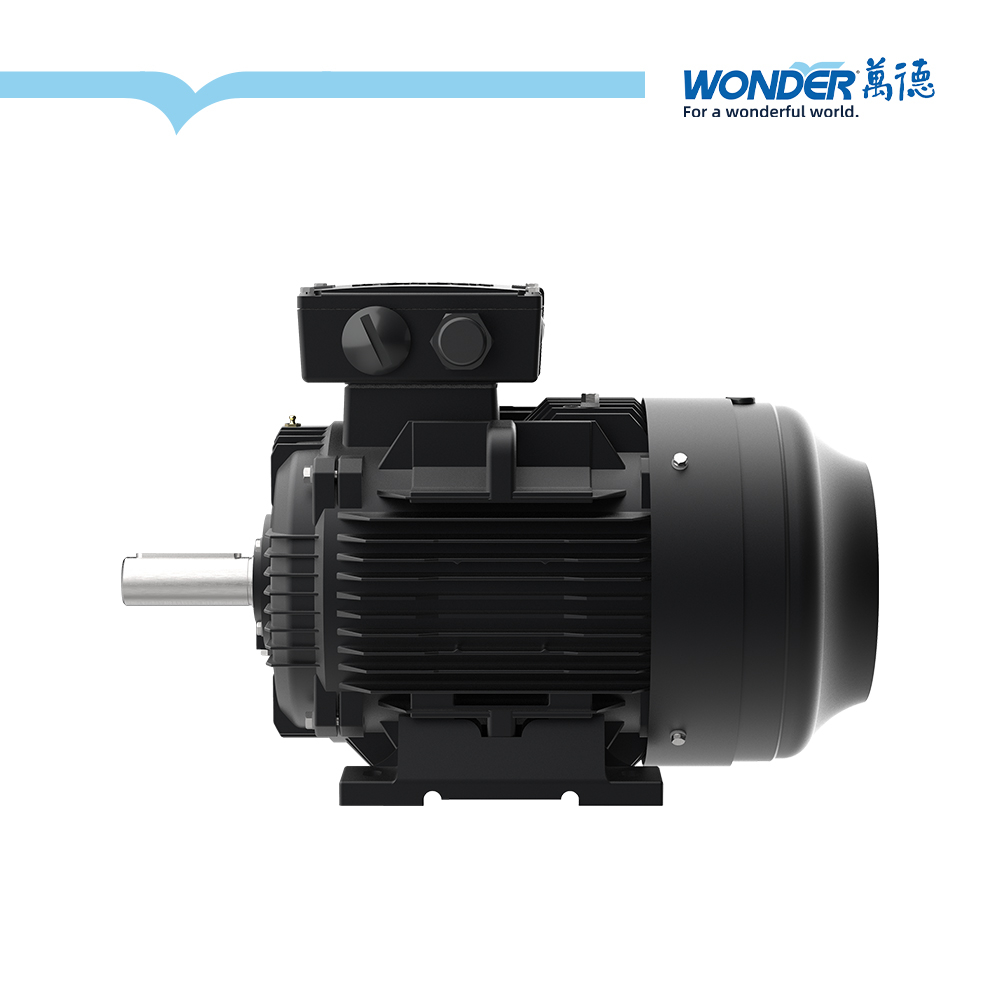

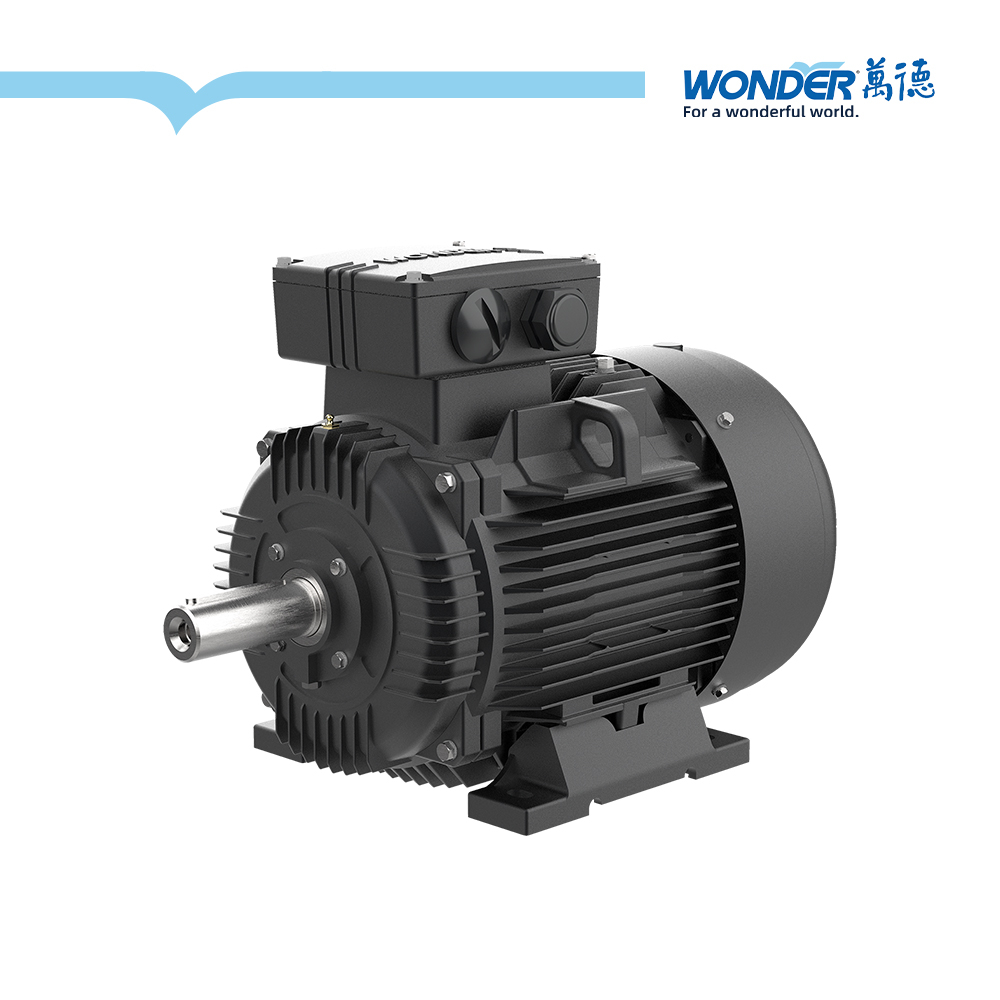

WE5 Series IE5 Three Phase Induction Motors

Product Category: Motors and engines

Save the product

Product Introduction

The WE5 series is a ultra-premium efficiency AIM independently developed by Wonder and meets the IE5 efficiency level of IEC60034.. The installation and external dimensions also comply with IEC standards, enabling customers to quickly switch and achieve energy efficiency upgrades.. The WE5 series features ultra-high efficiency, low noise, low vibration, stable operation, elegant appearance, safety and reliability, as well as ease of maintenance.. This series is primarily used for equipment such as fans, water pumps, compressors, gear box etc.. Widely applicable to various fields such as construction, tunnel engineering, industrial automation, water treatment, mining, and agriculture.. Frame size range: 80–355 Output power 0. 75~315kW Number of poles: 2P, 4P, 6P Rated speed: 3000/1500/1000 r/min Rated voltage: 400V, 380V, 220/380V, 380/660V, 230/400V, 400/690V, or be customized.. Frequency: 50Hz, 60Hz, variable frequency or be customized Protection class: IP55, IP56, IP65, IP66 Insulation class: F H Temperature Rise Grade B (ΔT 80).

Product Brochure
