WUXI HUAKE MACHINE EQUIPMENT CO., LTD.

SNIEC E7.858

Headquarters:

Target Groups:

suspended platform/gondola/cradle/swing stage

Product Category: Transport platforms

Save the product

Product Introduction

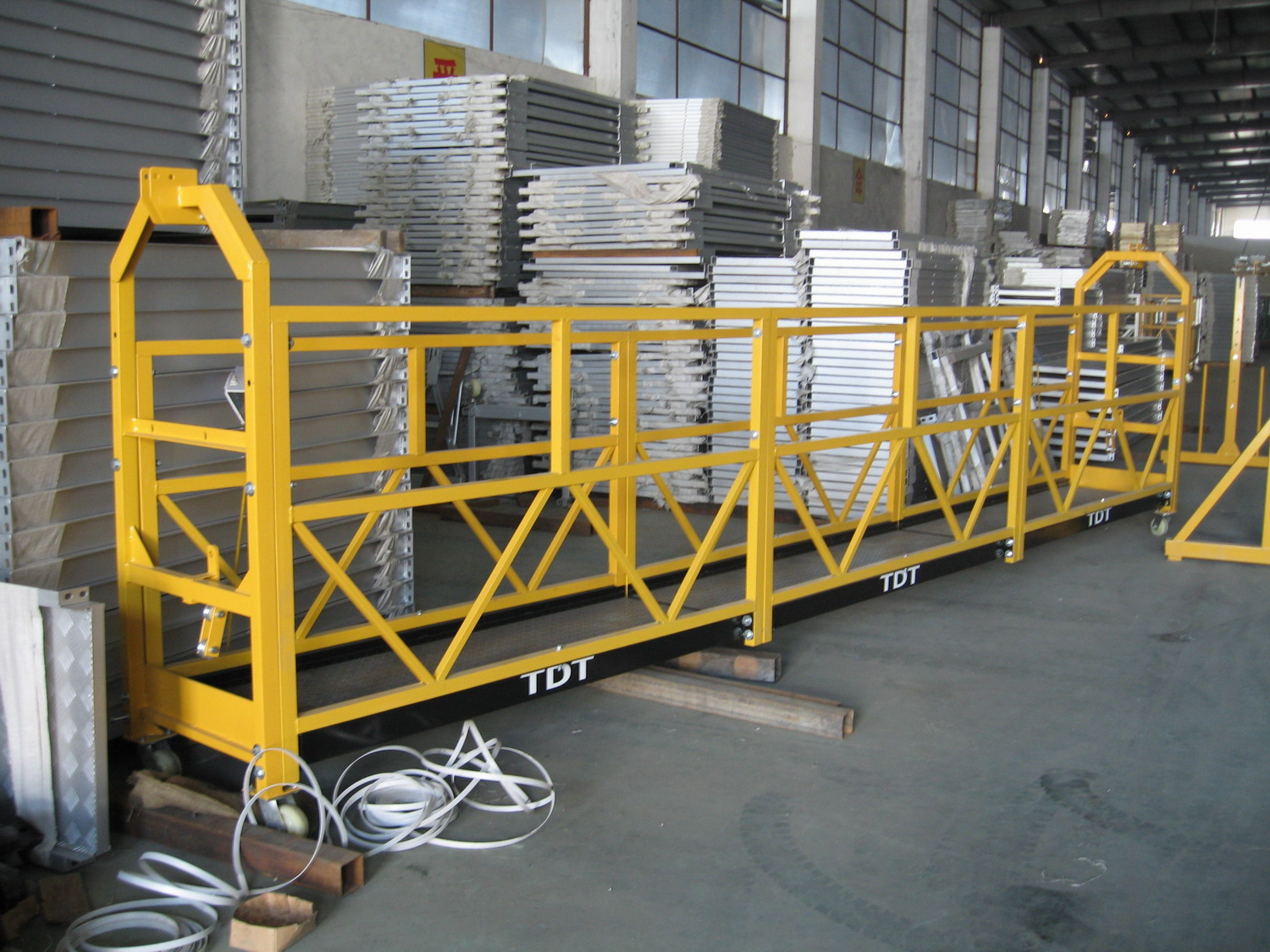

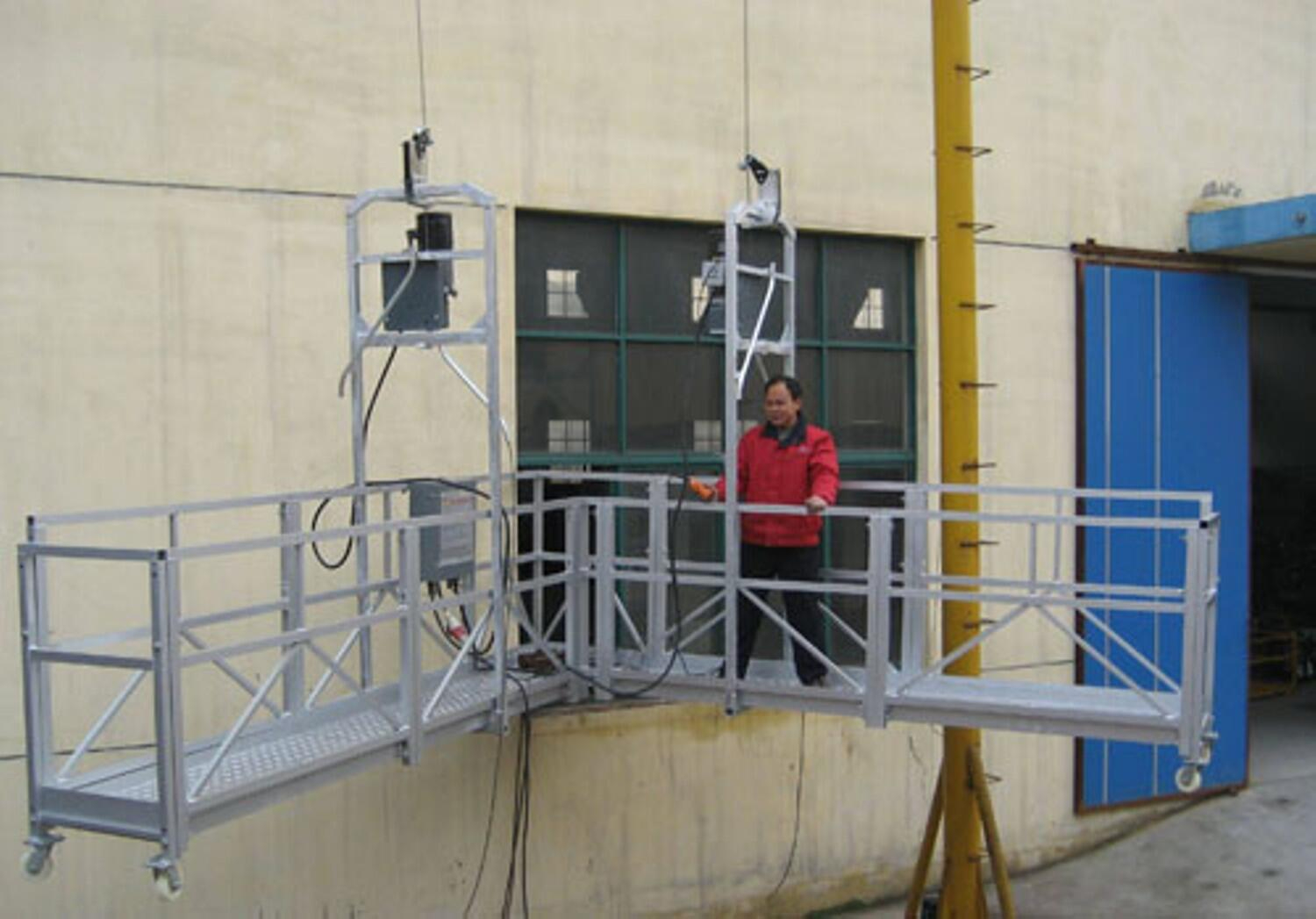

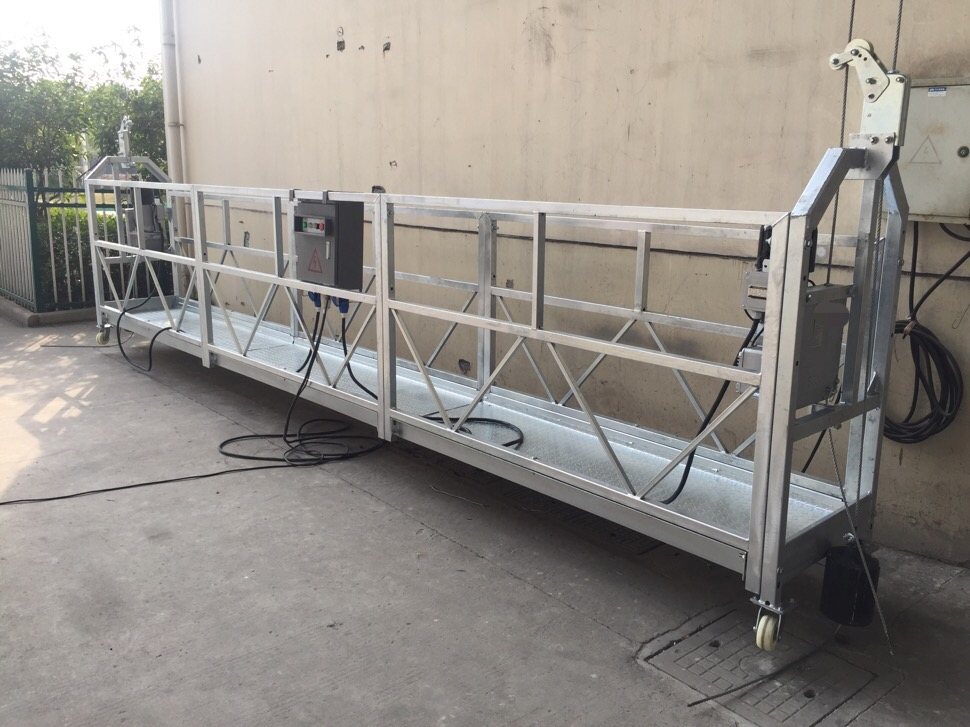

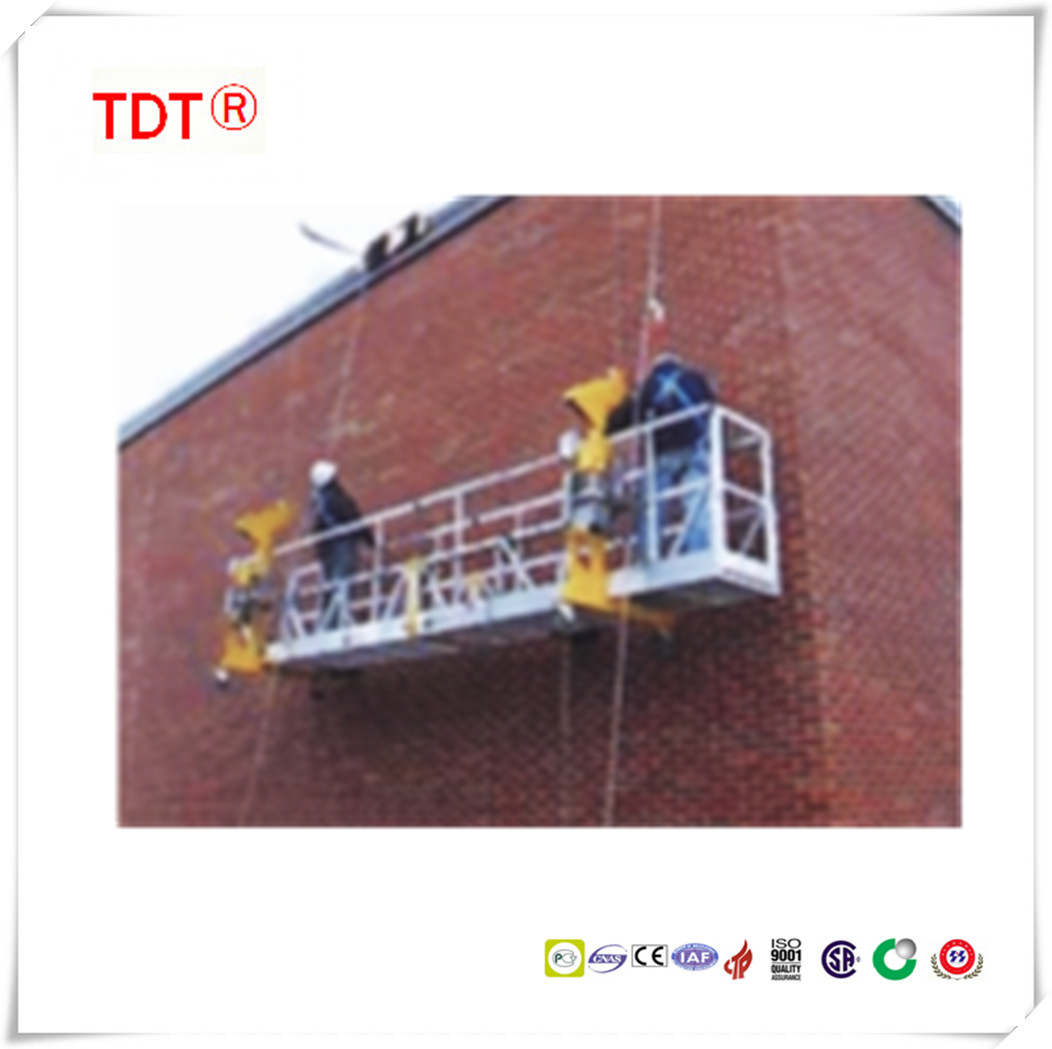

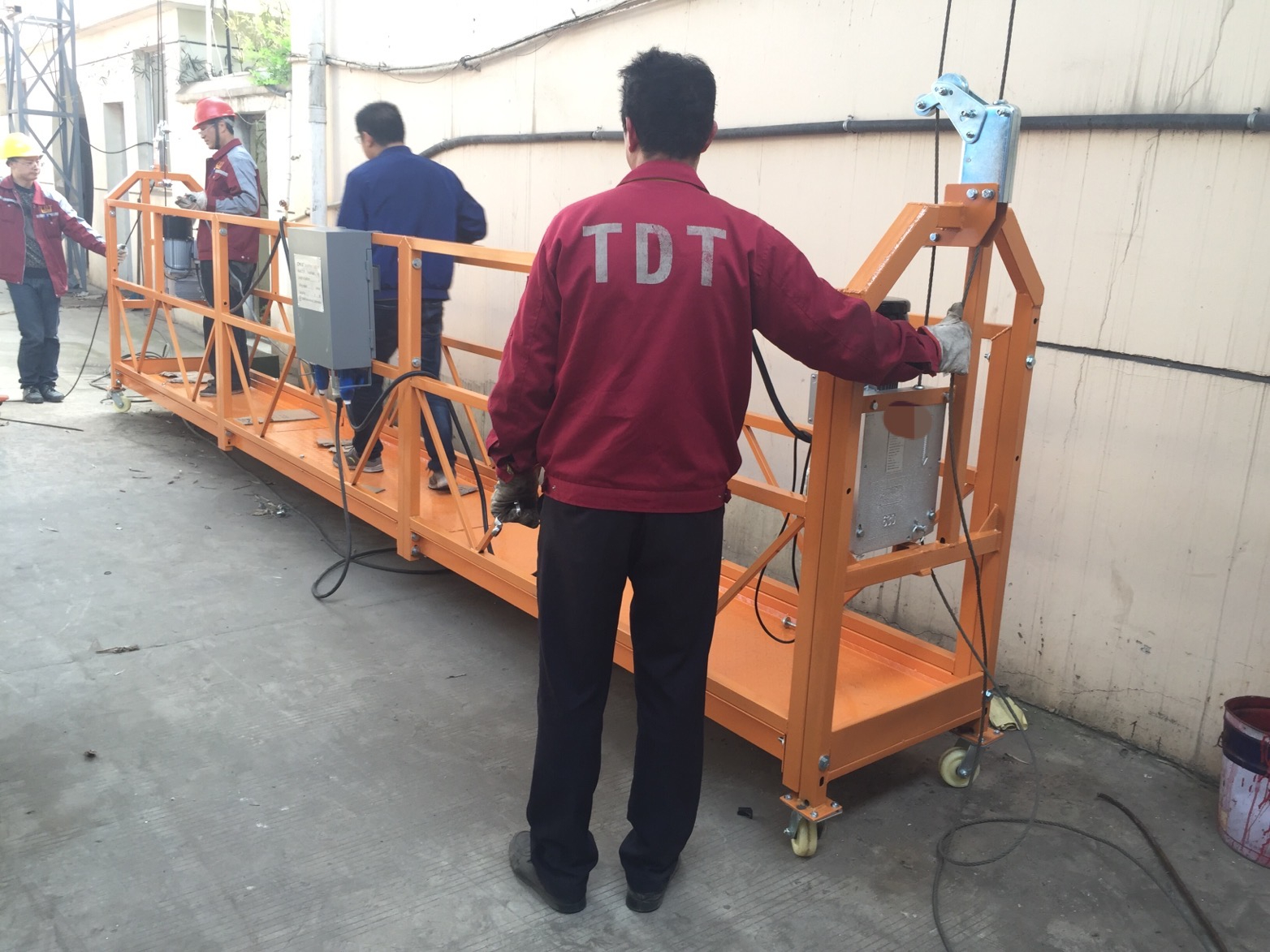

ZLP630 Suspended Platform — Technical Data Sheet Model: ZLP630 Product type: Temporarily installed suspended access platform / electric hanging cradle / gondola Standard: Usually designed to comply with EN 1808, GB/T 19155, CE/ISO optional depending on supplier 1. Main Parameters Item Specification Rated load 630 kg (persons + tools + materials) Lifting speed 9–11 m/min Platform length Standard 6 m (modular: 1 / 1.5 / 2 / 2.5 / 3 m sections) Platform width 0.69–0.76 m typical Platform height 1.18–1.45 m (with guardrails) Max lifting height 100 m standard, up to 200–300 m customizable Hoist model LTD6.3 / LTD63 Motor power 2 × 1.5 kW, 3-phase Voltage / frequency 220V / 380V / 415V, 50Hz or 60Hz (customizable)

Product Brochure
