GUANGXI NANKE HEAVY INDUSTRY MACHINERY CO., LTD.

SWEECC H1.956

Headquarters:

Target Groups:

New

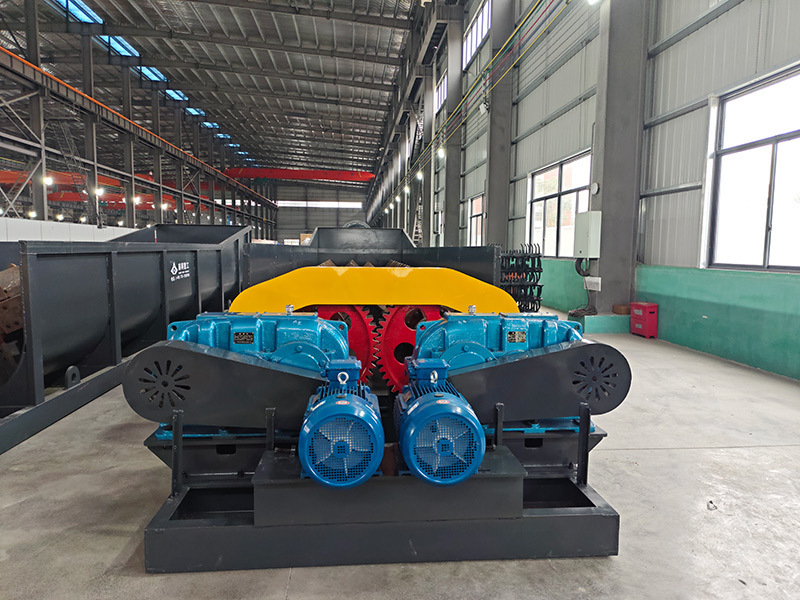

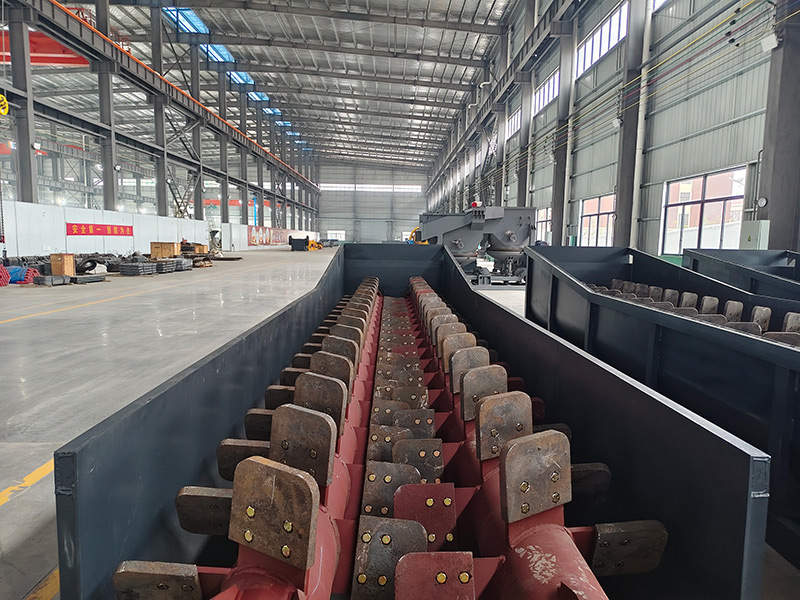

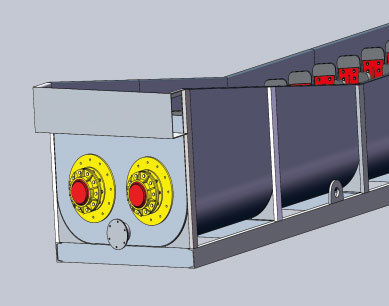

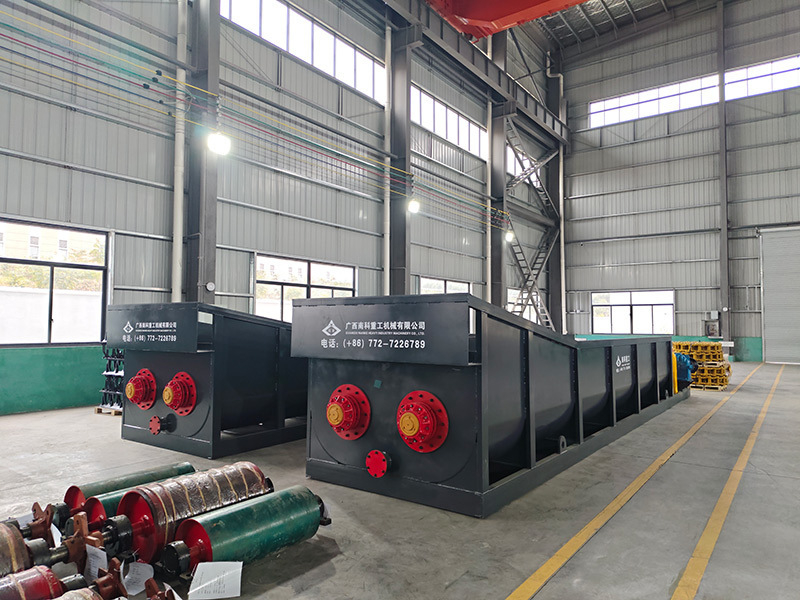

Trough Washer

Product Category: Dewatering units

Save the product

Product Introduction

The trough washer is used for mineral washing. It uses water to select the minerals, removing impurities such as sand dissolved in water from the original minerals, so that the minerals meet the requirements of technology and economy.This machine is suitable for washing minerals with a particle size of 75mm or less. Ore and water enter from the tail end. The trough is two‑thirds full. Impeller scrubbing and high‑pressure water (0.1–0.2 kPa) break down mud clumps, separating mud from ore. Slurry and coarse particles move in opposite directions. Fine mud exits via the bottom overflow; coarse particles are pushed up by the impeller and discharged at the outlet. The tail bearing sealing mechanism adopts the latest patented technology, which effectively solves the problem of pulp leakage.

Product Brochure

Other Products

New
New
Ball Mill

Pulverizing calcination plants

New
Dewatering Screen

Screening machines

New
Jig

Screening machines

New
Trough Washer

Dewatering units
