GUANGXI NANKE HEAVY INDUSTRY MACHINERY CO., LTD.

SWEECC H1.956

Headquarters:

Target Groups:

New

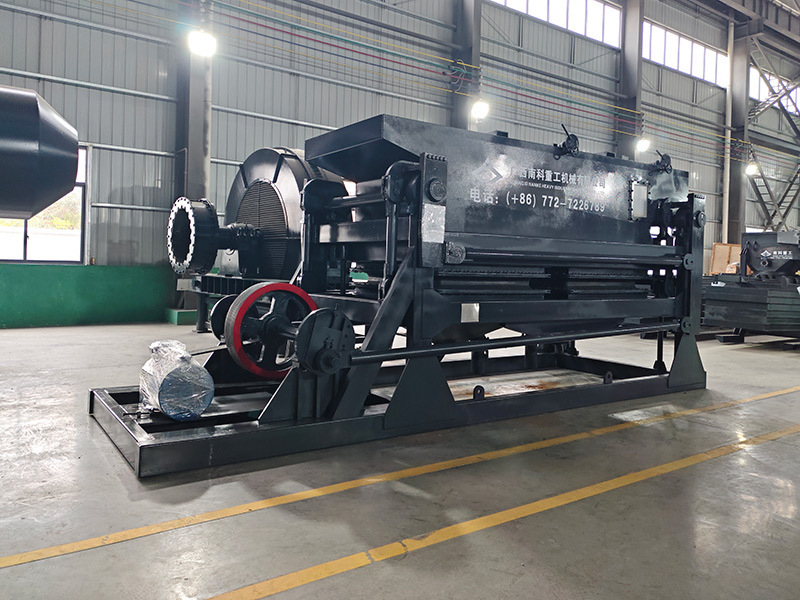

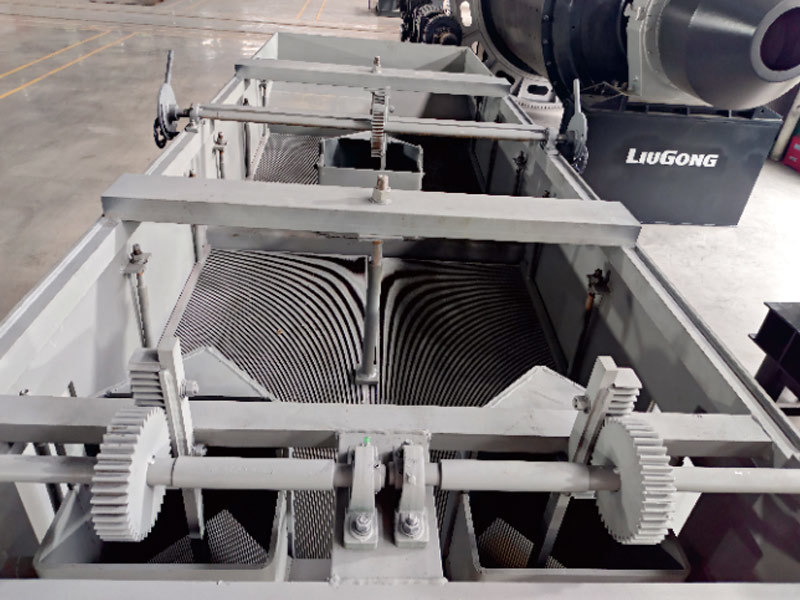

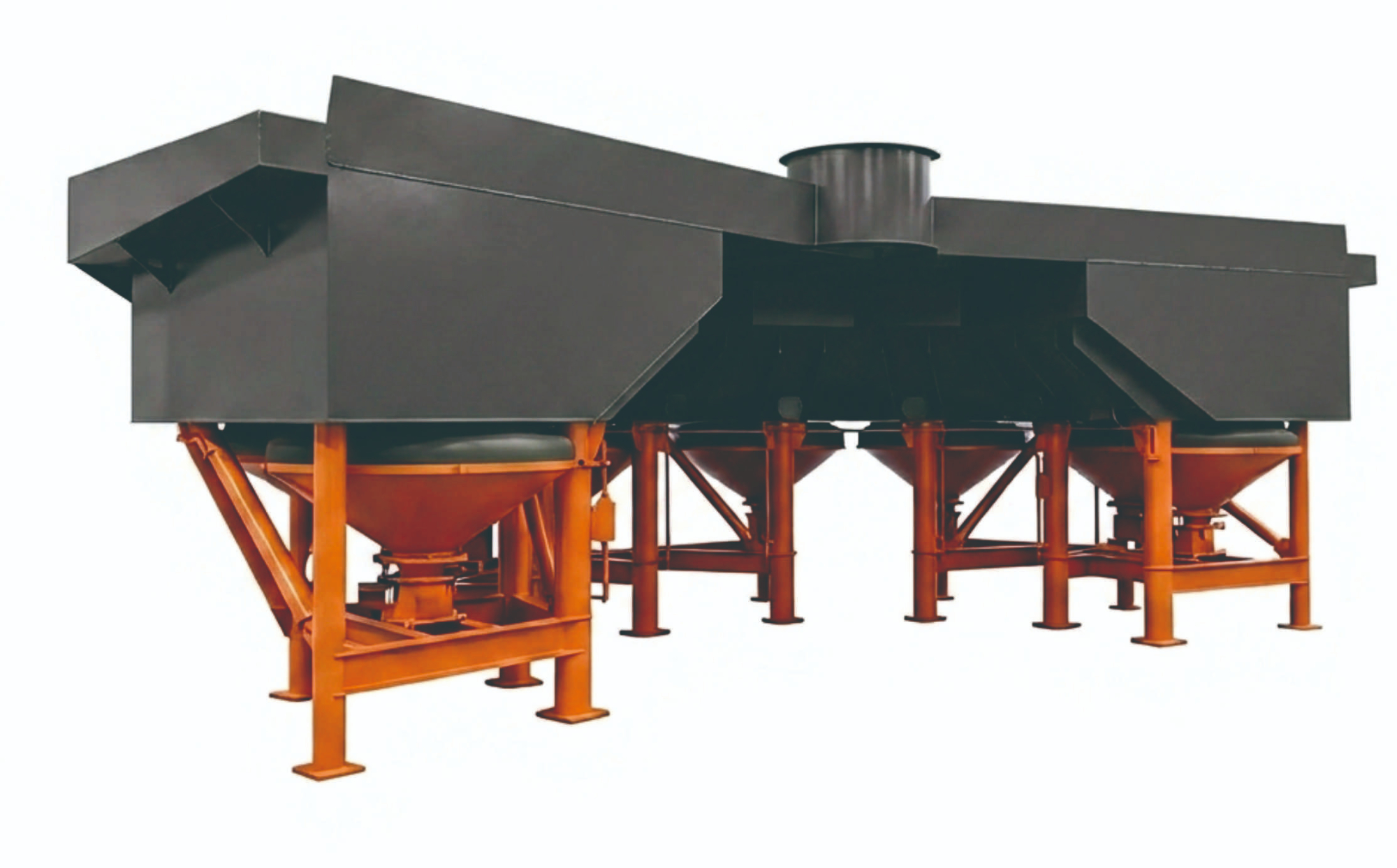

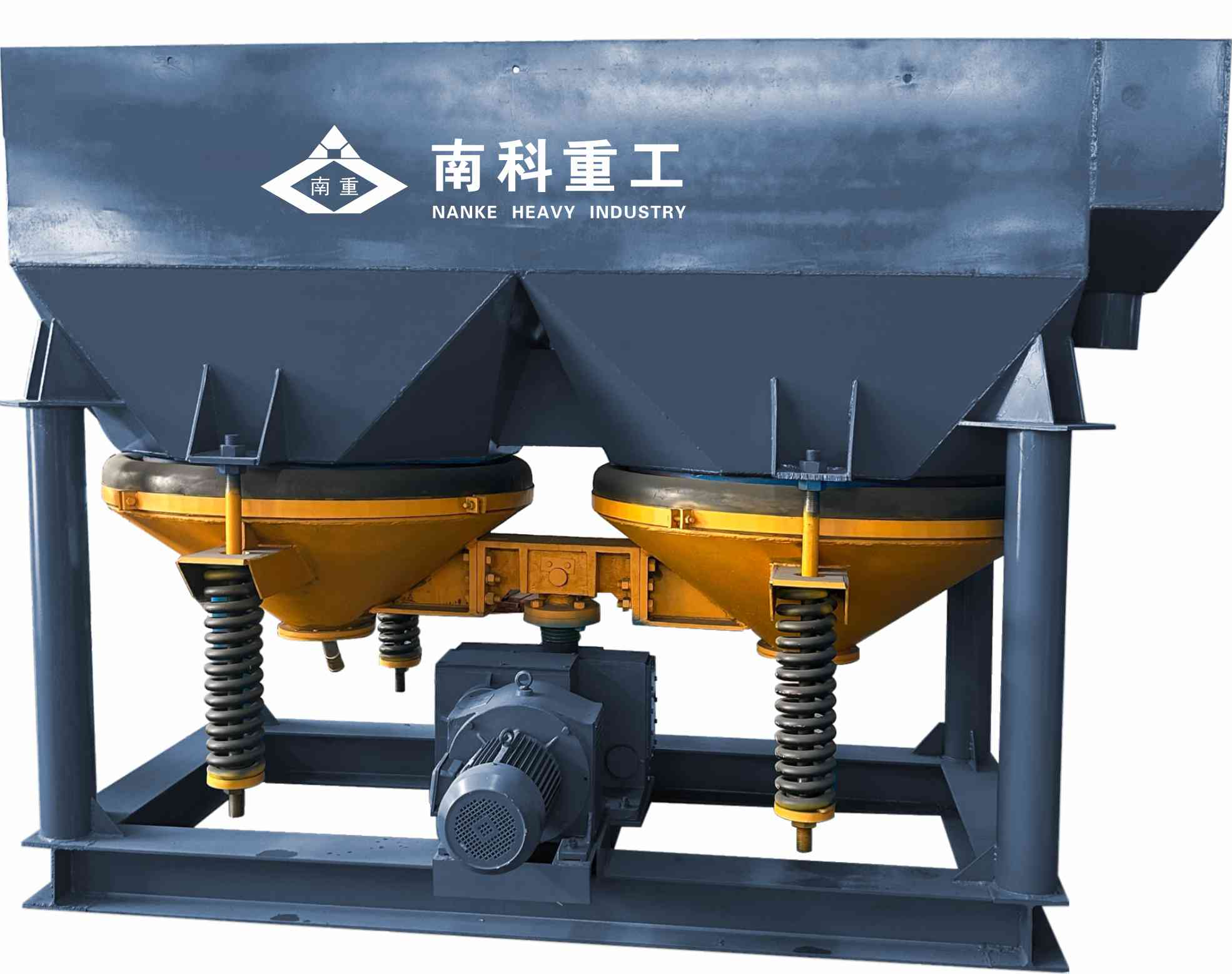

Jig

Product Category: Screening machines

Save the product

Product Introduction

Suitable for the purification of various rare metal ores (tungsten, tin, gold, copper, lead,zinc, chromium,titanium, zirconium, rare earths, rutile, monazite,tantalum-niobium,garnet, quartz, kaolin) and other products. Heavy minerals pass through the screenandenter the lower moving cone, and are discharged into the fine concentrate pool throughthe fine ore discharge valve. The coarse ore automatically forms a layer, and when thelayer exceeds the required thickness, it is discharged through the screen top dischargevalve and flows into the coarse concentrate pool. Changing the thickness of the coarseore layer can control the beneficiation quality. Light minerals and waste sand enter thetailings tank and are discharged.Under-driven conical diaphragm jigs use an eccentric connecting rod mechanism, delivering a stable, powerful upward water flow. Key advantages include high single-unit capacity, small footprint, and high recovery. They are widely used for placer gold, tungsten, tin, iron py

Product Brochure
